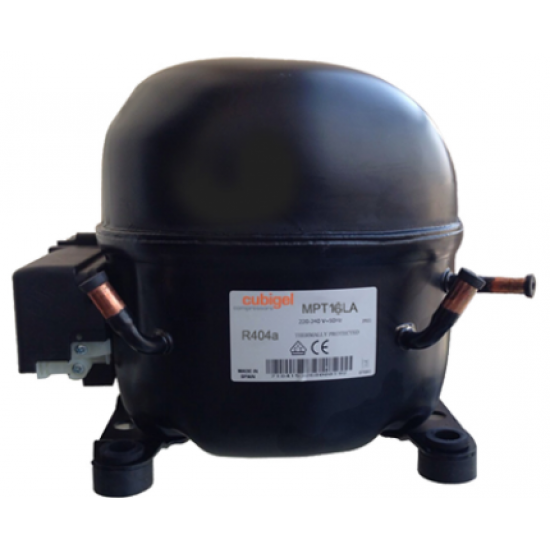

COMPRESSOR, 2X12LTR FF /3x12ltr/2x10ltr/,MPT16LA, 220-240V/50H, SL310010166,collection only

Technical Data Sheet

Compressor model MPT16LA

Voltage 220-240V 50Hz ~1

Refrigerant R404A

Application Low Back Pressure

Displacement 16,15 cm³ Nominal Power 1/2 hp

Refrigerant R404A

Diameter 31,19 mm Voltage/Frequency 220-240V 50Hz

Evaporating Temp. -40,0 ºC to -10,0 ºC Stroke 21,13 mm Voltage range 187-255 V

Expansion Capillar/Valve Net Weight 12,37 Kg Type CSR

Comp. Cooling Fan cooled Oil type ISO VG 32 ESTER Phase number 1 PH

Max. ambient temp. 43,0 ºC Oil charge 450 cm³ Locked Rotor Amps (LRA) 19,00 A Max. Cont. Current (MCC) 4,00 A Main W. resist. at 25ºC 5,30 Ω Start W. resist. at 25ºC 8,70 Ω
